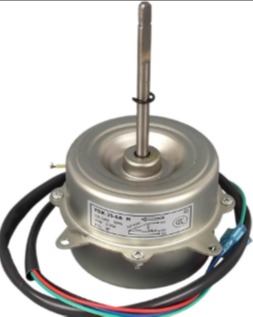

Product Description: YDK53-6 / YDKS-53-6 PSC Condenser MotorThe YDK53-6 (including sub-variants like YDK53-6KB, YDK53-6H, and YDK53-6Q) is a high-torque Permanent Split Capacitor (PSC) single-phase asynchronous AC motor. It is protected by a rugged, weather-sealed galvanized steel casing designed to survive direct rain, dust storms, and extreme seasonal outdoor heat.This motor is engineered to handle a much heavier thermal and mechanical load than the 35W/40W models. It drives large-diameter, multi-blade axial fan propellers inside an air conditioner’s outdoor condensing unit (ODU). By maintaining a high-volume airflow over the condensing coils, it ensures rapid heat rejection, allowing the compressor to function smoothly without tripping on high-pressure thermal overloads.Key Technical FeaturesMotor Type: Single-Phase Capacitor-Run Asynchronous AC Motor (6-Pole configuration).Electrical Inputs: Rated for standard 220V–240V AC at 50Hz / 60Hz. Current draw sits at approximately 0.62A to 0.76A (with a Locked Rotor Amperage [LRA] threshold up to 1.07A).Power Output: 53 Watts of continuous mechanical shaft power.Rotational Velocity: Operates at a stable, low-noise speed of approximately 850 RPM to 900 RPM.Physical Interface: Features an extended, threaded single-sided drive axle tailored for heavy lock-nut multi-blade fan mounting.Wiring & Hardware CompatibilityBecause of its heavy-duty 53W power tier and universal 3-post or 4-post perimeter mounting bolt footprint, the YDK53-6 series integrates into larger residential cooling systems:1. Large Outdoor Condensing Units (18,000 to 24,000 BTU / 1.5 to 2 Ton ACs)Compatible Systems: Outdoor units for medium-to-large split air conditioners, heat pumps, and floor-standing cabinet ACs across global brands like Midea, Gree, LG, and Carrier.Application: Mounts centrally to the internal chassis partition or structural face grill to pull immense air currents through high-surface-area condenser matrices.2. High-Voltage Relay & Run Capacitor CircuitsCompatible Components: High-voltage AC terminal blocks and external run capacitors (typically requiring a $3mutext{F}$ to $4mutext{F}$ / 450V motor run capacitor to balance the start phase windings).Application: Typically controlled via a 5-wire layout (incorporating internal thermal protectors). It wires into the primary contactor alongside the compressor circuit, cycling on instantly when the indoor thermostat signals the system to chill.3. Direct Cross-Compatible Replacement FamiliesIn the global HVAC service sector, this 53W 6-pole footprint is highly standardized and serves as a direct engineering substitute for:Interchangeable Models: YDK53-6KB(B), YDK53-6H, YDK53-6FB, YKT-53-6-23L, and generic 50W–55W 6-pole outdoor ventilation units sharing the same frame diameter.
