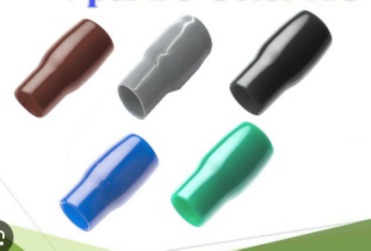

Product Description The V-Series Vinyl Wire End Caps (PVC Cable Lug Sleeves) are flexible, protective insulation covers designed to shroud electrical wire terminations and cable lugs. Manufactured from high-grade, soft polyvinyl chloride (PVC), these sleeves easily slip over crimped terminals to provide reliable electrical insulation, dust proofing, moisture resistance, and neat color-coding for multi-phase wiring systems. Their pliable design allows them to expand slightly over irregular terminal shapes while maintaining a snug, secure fit that won’t slide off over time. Key Specifications Model Series: V-Series (e.g., V-1.5, V-2, V-3.5, V-5.5, V-8, V-14, V-22 up to V-600) Material: Soft, flexible Polyvinyl Chloride (PVC) Insulation Rating: Typically rated up to 600V Temperature Tolerance: Max operating temperature up to 105 ∘ C (221 ∘ F) Available Colors: Standard industrial color-coding palette (Red, Black, Blue, Yellow, Green, White) Flame Retardancy: Generally UL94V-0 or UL94V-2 compliant (depending on the exact manufacturer grade) Compatibility Guide Because these caps are sized according to standard electrical engineering wire gauges and cable metric dimensions, compatibility is determined strictly by cross-sectional area (mm 2 ) or American Wire Gauge (AWG) sizes. 1. Cable Size & Specification Matching Table Choose the specific V-model end cap that matches your electrical cable or ring terminal size: End Cap Model Compatible Cable Cross-Section Matching American Wire Gauge (AWG) V-1.5 1.25 mm 2 16 – 22 AWG V-2.5 / V-3.5 2.0−3.5 mm 2 14 – 12 AWG V-5.5 5.5 mm 2 12 – 10 AWG V-8 (Shown in View) 8.0−10.0 mm 2 8 AWG V-14 14.0−16.0 mm 2 6 AWG V-22 22.0−25.0 mm 2 4 AWG V-38 / V-60 38.0−60.0 mm 2 2 AWG to 1/0 AWG 2. Compatible Terminal Types These insulation sleeves are universal and explicitly designed to fit snugly over: SC / RNB / SNB Series Lugs: Standard copper ring terminals, spade terminals, and fork terminals. C45 Pin Terminals: Standard copper/aluminum needle crimp connectors used in circuit breakers. Battery Cable Ends: Frequently used to insulate terminal links on custom automotive, marine, and solar battery bank wiring layouts. 💡 Fit Tip: If your cable insulation is exceptionally thick or you are double-crimping wires into a single lug, it is highly recommended to step up one size (e.g., using a V-14 cap on a thick 10 mm 2 wire setup) to accommodate the extra outer diameter.
