Description

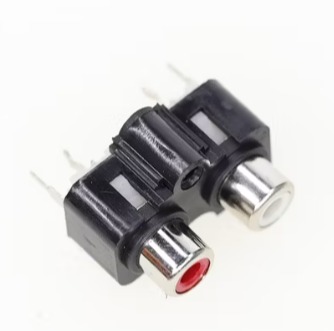

Product DescriptionThe Dual RCA Female Chassis Mount Connector (often categorized as an RCA Stereo AV DIP PCB Mount Socket) is an integrated dual-port audio component engineered for structural interface enclosures. This block-style connector clusters independent left and right audio channels into a singular, space-saving footprint. It is built around a heavy-duty, flame-retardant thermoplastic housing equipped with two robust, colored entry washers.Unlike inline jacks, this model is specifically engineered with rear through-hole solder pins (DIP/PCB configuration) alongside integrated mounting tabs. This ensures a rock-solid mechanical anchor to circuit boards or chassis plates, preventing trace cracking from repeated plugging and unplugging.Key SpecificationsModel Footprint: Standard RCA-249 Series ConfigurationInterface Type: 2x RCA Female Ports (Phono Sockets)Standard Color System: Red (Right Channel) and White (Left Channel)Mounting Type: Right-Angle PCB Through-Hole (DIP) with structural grounding chassis tabs.Impedance: $75 Omega$ (Optimized for analog line-level signal isolation).Compatibility & ApplicationsAs a core manufacturing standard in electronics, this dual female RCA chassis socket is entirely universal. It interfaces seamlessly with all standard male RCA plugs and serves as a vital component for repairing or fabricating structural media inputs.It is heavily found on the main circuit board arrays of the following hardware:1. Consumer Home Theater ElectronicsAV Amplifiers & Subwoofers: Provides the foundational low-level AUX input or tape-loop return ports on consumer stereo receiver blocks.DVD & Blu-ray Players: Act as the primary analog downmix Left/Right audio line outputs on rear component panels.Soundbars & Desktop Audio: Handles hardwired analog media line inputs.2. Microcontrollers & Custom DIY HardwareCustom Enclosure Breakouts: Popular for building structural input/output ports on customized project boxes housing Arduino audio matrices or Raspberry Pi soundboards.Retro Console Customization: Used by electronics hobbyists to modify vintage gaming consoles (like the Atari, NES, or Sega Genesis) with modern, clean AV output ports.3. Industrial Sound Systems & Testing ArrayIntercom & Public Address Blocks: Serves as the back-plane auxiliary audio input stage for building amplifiers and zoning hubs.Bench Testing Instrumentation: Used on diagnostic panels requiring static, low-impedance testing inputs.
