Fridge Fan Motor Invertor DL-5985HACB

Description

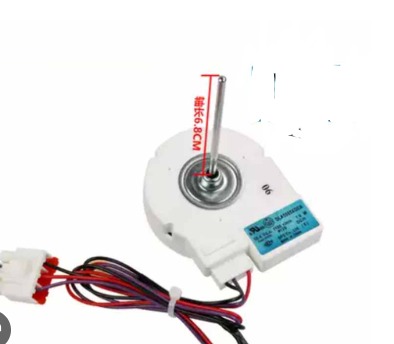

Product Description: DLA5985XQEA DC Brushless Inverter Fan MotorThe DLA5985XQEA is a high-efficiency, micro-controlled DC Brushless (BLDC) fan motor housed inside a fully sealed, aerodynamic white teardrop plastic casing.Unlike conventional fixed-speed AC motors that run at 100% capacity or zero, this smart motor is managed directly by the refrigerator’s main electronic control board (PCB). It uses an integrated Pulse Width Modulation (PWM) internal feedback loop. This allows the refrigerator to infinitely adjust the fan’s rotation speed based on real-time data from internal temperature sensors, maximizing energy efficiency and reducing operational noise down to a whisper.Key Technical FeaturesOperating Voltage: Rated at 10.4V DC (fully stable across standard 9V to 13V DC operational sweeps).Power & Speed Performance: Draws a highly efficient 1.6 Watts of power while running at a calibrated speed of 1,190 RPM.Drive Shaft Dimensions: Features an extended smooth metal drive axle measuring 6.8cm (68mm) in length with a standard diameter ($varnothing 3.17text{mm}$).Wiring Interface: Utilizes a multi-wire harness layout terminating in a specific 3-pin or 4-pin interlocking nylon plug (carrying Power VCC, Ground GND, and PWM Speed Signal/Tachometer lines).Compatible Mechanisms & Smart AppliancesBecause the DLA5985XQEA is a low-voltage DC component driven by computer logic, it is entirely incompatible with old mechanical 220V fridges. Instead, it is highly compatible with the following mechanisms:1. Haier & Bosch Smart Inverter Refrigerators (Primary OEM Match)Compatible Mechanisms: Mid-to-large capacity multi-door, Side-by-Side, and French-door No-Frost inverter refrigerators manufactured by Haier, Bosch, Midea, and Casarte.Application: Installed as the primary evaporator circulation fan inside the freezer wall plenum or fresh-food multi-flow air tower assembly, shifting speeds smoothly depending on how often the doors are opened.2. Multi-Wire DC Fan Shrouds & PWM ControllersCompatible Components: Intelligent main control PCBs configured to output a stable 10V–12V DC power rail alongside an active digital tachometer frequency monitor line.Application: Drops into matching molded rubber anti-vibration mount clips. The onboard computer reads the fan’s RPM line constantly; if a stray item or ice build-up jams the fan blades, the system detects the stall immediately and triggers an error code (such as an “F1” or “E4” display fault) to protect the compressor from liquid slugback.3. Direct Cross-Compatible Replacement FamiliesIn the global digital appliance repair trade, this SPG motor architecture shares an identical technical footprint and can be directly cross-referenced with:Interchangeable Models: DL-5985HACB, DL-5985HACA, DLA5985HAEH, DL-5985ZYEB, and specialized Haier part factory codes such as 0064000460 or 0064000944.
