Fuse Holder 20mm

Description

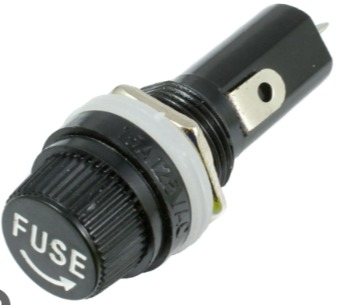

5mm x 20mm Panel Mount Fuse Holder The 5mm x 20mm Panel Mount Fuse Holder is an essential electrical safety component designed to protect electronics and appliances from overcurrent and short-circuit damage. Engineered for convenience and safety, this chassis-mountable socket houses a standard glass or ceramic cartridge fuse. It features a rugged, impact-resistant plastic body, a secure screw-on cap for easy tool-less fuse replacement, and heavy-duty solder tab terminals on the rear for stable wiring. Key Features Compatible Fuse Size: Fits standard 5mm x 20mm (0.2″ x 0.79″) glass or ceramic cartridge fuses. Electrical Rating: Typically rated up to 10A / 250V AC or 15A / 125V AC (depending on the specific internal fuse used). Mounting Type: Panel/Chassis mount with an integrated securing hex nut and rubber washer to guarantee a flush, vibration-resistant fit. Cap Design: Finger-grip or screwdriver-slot screw cap, allowing quick access to inspect or swap out blown fuses from the exterior of an enclosure. Compatibility Guide This universal safety component acts as an intermediary barrier between an incoming power source and the internal circuitry of an appliance. 1. Compatible Fuses (Sizing & Rating) 5x20mm Glass Fuses: Quick-acting (fast-blow) or time-delay (slow-blow) miniature glass tube fuses (e.g., 1A, 2A, 5A, up to 10A). 5x20mm Ceramic Fuses: High-breaking-capacity ceramic tube fuses used for higher thermal resistance applications. 2. Compatible Equipment & Enclosures Power Supplies & Transformers: Installed on the AC input side of custom linear or switching power supply units (PSUs). Audio Amplifiers & Pro Audio Gear: Commonly found on the rear panels of guitar amplifiers, studio mixers, PA systems, and vintage stereo receivers to protect delicate transformers. Industrial Control Panels & Test Equipment: Used in custom hobbyist electronics benches, lab power supplies, and control boxes. Household & Commercial Appliances: Fits as a direct replacement part for broken fuse sockets in espresso machines, arcade cabinets, 3D printers, and small kitchen appliances. 3. Installation Tools Mounting Cutout: Requires a standard circular chassis panel hole (typically approx. 12mm to 15mm in diameter depending on the thread size). Wiring: Connects via standard stranded hookup wire terminated with solder or small quick-disconnect crimp female terminals.
