Description

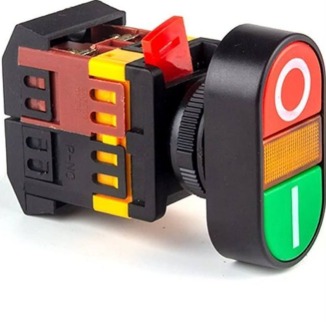

Product DescriptionEB2C Illuminated Industrial Push Button Switch (Momentary ON/OFF)Optimize your control layout with the high-performance EB2C Illuminated Push Button Switch. This industrial-grade, panel-mount switch combines an ergonomic, flush-fitting actuator button with a built-in central LED lamp. It provides both structural tactile control and immediate visual feedback of your machinery’s operating status in one space-saving package.Operating via a reliable momentary (self-resetting) action, the button springs back immediately upon release, making it ideal for commanding logic circuits or pulse-triggering industrial automation systems. Its robust modular backing allows quick maintenance or contact stacking to fit the exact requirements of your electrical panels.Key FeaturesIntegrated LED Illumination: Bright, low-power inner lamp provides distinct visibility (available in Red, Green, Yellow, Blue, and White).Momentary Self-Resetting: Button springs back instantly after being pressed, preventing continuous closed-circuit loops.Modular Contact Design: Ships with standard detachable contact blocks that can be easily interchanged or stacked for multi-circuit control.Standard 22mm Cutout: Drops directly into standard 22mm ($frac{7}{8}text{-inch}$) industrial panel cutouts, requiring no custom tooling or mounting alterations.Technical Specifications & Family VariationsElectrical RatingsMax Operational Voltage: Up to $380text{V AC}$ / $220text{V DC}$Thermal Current ($I_{th}$): $10text{A}$ continuous capacityIndicator Lamp Voltages: Commonly available in $24text{V AC/DC}$, $110text{V AC}$, or $220text{V AC}$ configurations.Compatible Model & Series VariationsThe EB2C and highly interchangeable XB2 family utilize the exact same frame layout, allowing you to alternate between different control logic and aesthetic setups:EB2C-BW3361 / XB2-BW3361 (Green): Equipped with a 1NO (Normally Open) contact block—primarily used as a “START” or system activation button.EB2C-BW3462 / XB2-BW3462 (Red): Equipped with a 1NC (Normally Closed) contact block—primarily used as a “STOP” or system deactivation button.Latching (Self-Locking) Variants: Identical exterior look but the button physically stays depressed when pushed, requiring a second push to pop back out and break the circuit.Extended/Mushroom Head Variants: Feature a raised cap for quicker physical targeting in high-velocity workplace environments.Product & System CompatibilityThis illuminated push button series is highly standardized across the automation industry and coordinates seamlessly with standard hardware:Modular Contact Modules: Fully compatible with standard ZB2-BE / ZB2-BZ style contact blocks (NO and NC modules). You can effortlessly snap extra contact blocks onto the back of the switch body to control secondary auxiliary signaling paths or trigger independent safety alarms at the same time.Industrial Control Enclosures: Fits perfectly into standard off-the-shelf single-hole or multi-hole Plastic/Aluminum Push Button Station Boxes designed for 22mm panel components.Motor Control Elements: Universally compatible as the primary remote interface for triggering AC Magnetic Contactors, Relays, and Magnetic Motor Starters powering pumps, exhaust fans, and assembly conveyor arrays.Industrial Terminal Connections: Equipped with solid screw-clamp terminals that accept standard $Ytext{-type}$ (Spade) or Ring crimp terminal lugs for vibration-proof wiring setups.
