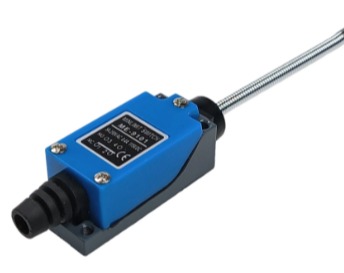

Limit Switch ME-9101

Description

Product Description Ensure safe, accurate automated control over your machinery with the Premium ME-9101 Momentary Flexible Coil Spring Rod Limit Switch. Engineered as a high-reliability travel sensor, this industrial micro switch features an omnidirectional, heavy-duty wobble stick (cat whisker) actuator that triggers electrical contacts when pushed or deflected from any angle. Housed in a rigid, impact-resistant composite body with a sealed rubber wire boot, it offers exceptional resilience against environmental dust, minor splashes, and machine vibrations. Inside, it utilizes high-conductivity silver contacts arranged in a standard 1NO + 1NC (Normally Open / Normally Closed) DPST snap-action configuration, delivering crisp electrical switching and an automatic momentary reset the instant the physical pressure is released. Key Features Omnidirectional Spring Actuator: Flexible steel coil spring bendably triggers from any direction, making it ideal for irregular targets, conveyor counting, or loose mechanical linkages. Snap-Action Contacts: 1NO + 1NC dual-circuit architecture ensures rapid, definitive electrical state changes to prevent arcing and signaling delay. Sealed & Protective Housing: Built with a protective rubber strain-relief boot at the cable entry point to safeguard internal wiring from debris and tension pull. High Electrical Capacity: Fully rated to handle control circuit demands up to 250V AC (5A) or 115V DC (0.4A) smoothly. ## Technical Specifications Parameter Specification Model ME-9101 (YBLX-ME/9101 / TZ-9101) Actuator Type Flexible Coil Spring Rod (Wobble Stick / Cat Whisker) Contact Configuration DPST (1NO + 1NC) Action Type Momentary / Automatic Reset Voltage & Current Rating 250V AC, 5A / 115V DC, 0.4A Casing Material High-Grade Impact-Resistant Polymer & Metal Base ## Compatibility & Application Guide This miniature travel limit switch features a standardized industrial footprint, making it a direct drop-in replacement across global and regional commercial automated machinery lines. Common Industrial Uses CNC & Automation: Serves as an ideal end-stop, home position finder, or safety travel limit for CNC mills, laser cutters, plasma tables, and custom 3D printers. Packaging & Conveyors: Widely implemented on production lines to count passing packages, detect conveyor jams, or monitor sorting gates. Garage Doors & Hoists: Excellent for sensing open/closed thresholds on overhead bay doors, industrial cargo lifts, and motorized hoist winches. Brand Interchangability This component matches standard international mounting hole spacing and coordinates directly as an alternative for matching product lines distributed on platforms like Daraz.lk, including: Moujen & Chint: Directly matches the structural parameters of the premium Moujen ME-9101 series and CHINT YBLX-ME 9101 travel switches. Universal Replacements: Universally swaps out identically spec’d spring-rod limit housings from brands like Uxcell, Tiwkoo, Daokai, and Schneider/Omron style aftermarket clones. ⚠️ Installation Note: Ensure all electrical power is completely disconnected before wiring up the NC/NO terminal blocks. This switch is designed for low-current control circuits (relays, PLCs, contactor coils) and should not be wired directly in-line to handle heavy mechanical motor startup currents without an intermediate contactor.
