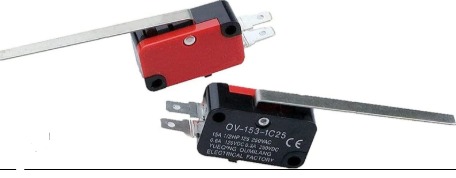

Product Description V-153-1C25 Miniature Micro Limit Switch (Long Straight Hinge Lever) Achieve precise position sensing and reliable automation control with this heavy-duty Miniature Micro Limit Switch. Featuring a 27mm long straight hinge lever arm (actuator), this switch requires very low physical force to trigger, making it perfect for detecting subtle mechanical movements, passing components, or structural boundaries. Utilizing a premium snap-action mechanism, it offers instant, decisive switching with high repeatability to reduce electrical arcing and maximize service life. Equipped with standard 6.3mm ( 4 1 -inch) quick-connect spade terminals, it is designed for swift, solderless wiring installations. Key Features Long Lever Actuator: The extended straight stainless steel hinge lever multiplies mechanical advantage, allowing light mechanical triggers to easily trip the internal mechanism. Snap-Action Reliability: Delivers rapid, momentary contact switching that ensures stable and highly repeatable performance in high-speed machinery. SPDT Configuration: Built with 3 pins (Common, Normally Open, Normally Closed) to support diverse circuit logic—letting you choose whether to break or complete a circuit upon contact. Industrial-Grade Build: Constructed from high-temperature, flame-retardant thermoplastics and high-conductivity silver alloy contacts. Technical Specifications & Family Variations Electrical Ratings AC Rating: 15A at 125V / 250V AC Inductive/Motor Load: 2 1 HP continuous rating DC Rating: 0.6A at 125V DC / 0.3A at 250V DC Compatible Models & Family Variations The V-15 family sharing the exact same body frame footprint and terminal layout incorporates different actuator arms to suit diverse mechanical setups: V-153-1C25 (This Model): Features the long straight hinge lever arm actuator (27mm). V-151-1C25: Short straight hinge lever variant. V-152-1C25: Medium-length straight hinge lever variant. V-154-1C25: Long simulated roller lever (curved tip) variant. V-155-1C25: Short hinge lever equipped with an active rolling wheel. V-156-1C25: Long hinge lever equipped with an active rolling wheel. Product & System Compatibility This micro limit switch is a universal mechanical design utilized across consumer, developer, and industrial ecosystems: Microcontrollers & Dev Boards: Seamlessly interfaces with Arduino, Raspberry Pi, and ESP32 development kits when wired with standard pull-up/pull-down resistors for mechanical logic sensing. Appliances & Machinery: Commonly used as a replacement safety interlock switch for microwave oven doors, arcade machine joysticks/buttons, commercial vending dispensers, and 3D printers (as homing/Z-axis endstops). Industrial Automation Equipment: Drops directly into factory safety doors, conveyor belt item counters, CNC routing machines, and automated HVAC damper systems. Terminal Connectors: Fully compatible with standard female 6.3mm insulated crimp spade connectors or direct wire soldering for robust connection integrity.
