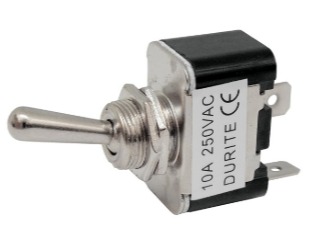

Product Description Heavy-Duty Metal Toggle Switch (3-Position ON-OFF-ON) Add reliable, tactile control to your electrical projects with this premium Heavy-Duty Metal Toggle Switch. Featuring a classic, rugged brass/steel lever and a durable internal mechanism, this switch is engineered to withstand demanding automotive, marine, and industrial environments. With its three-position ON-OFF-ON configuration, it allows you to easily alternate between two separate circuits or completely cut power in the center position. The crisp, positive snap action prevents accidental switching and ensures a secure connection every time. Key Features Rugged Construction: Built with a solid metal lever and a high-temperature flame-retardant housing for long-lasting durability. 3-Position Control: Features an ON-OFF-ON latching mechanism, perfect for changeover applications (e.g., switching between two power sources or controlling motor direction). Secure Mounting: Designed for standard 12mm ( 2 1 -inch) panel cutouts, complete with a locking ring and hex nuts to prevent rotation. Versatile Connections: Equipped with heavy-duty screw terminals or standard 6.3mm spade quick-connect tabs for secure, hassle-free wiring. Technical Specifications & Compatibility Electrical Ratings AC Rating: 10A at 250V AC / 15A at 125V AC DC Rating: Highly effective for 12V and 24V DC automotive/marine applications (typically rated up to 20A at 12V DC). Compatible Circuit Types & Variations Depending on your wiring setup, this switch design is available in standard configurations that dictate its compatibility: SPDT (Single Pole Double Throw – 3 Pins): Controls one circuit path alternating between two different outputs (e.g., switching a single light setup between Battery A and Battery B). DPDT (Double Pole Double Throw – 6 Pins): Controls two independent circuits simultaneously. Essential for DC motor polarity reversal (forward/reverse controls). Product & System Compatibility This industrial-grade toggle switch is universally compatible across a wide range of equipment and enclosures: Automotive & Marine Systems: Ideal for custom dashboards in cars, trucks, off-road vehicles, boats, and RVs to control dual auxiliary accessories, winches, or trim tabs. Industrial Control Panels: Fits seamlessly into custom DIY project boxes, distribution panels, and machinery control consoles using standard 12mm mounting holes. Power Sources: Compatible with switching between dual power inputs, such as alternating a system’s supply between Mains Power and a Generator/Inverter backup. Hardware Accessories: Perfectly compatible with standard rubber waterproof boot covers (M12 thread size) for added protection against moisture and dust in outdoor environments.
