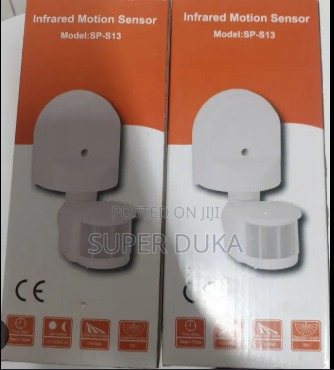

Motion Sensor SP-S13

Description

The SP-S13 (commonly branded under Heritage as the HE-S13) is an automatic, energy-saving infrared motion sensor switch designed for indoor and outdoor security lighting. Operating on passive infrared (PIR) technology, the device detects the thermal signatures emitted by moving human bodies within its detection zone. When movement is sensed, it instantly closes an internal electrical relay circuit to activate connected floodlights, corridors lights, or alarm systems. It features customizable dials for time delay, ambient light sensitivity (day/night activation), and sensor orientation, making it a reliable choice for hands-free lighting control, energy conservation, and property defense. Key Mechanical & Technical Features 180-Degree Swivel Neck: Designed with a flexible mechanical hinge connection that allows the sensor head to tilt up, down, or rotate sideways to precisely target specific entryways or pathways. Triple Adjustment Dials (Potentiometers): * SENS (Sensitivity): Adjusts the detection distance/range mechanism (typically up to 12 meters). TIME: Controls the mechanical relay hold time (how long the light stays on after motion stops, usually adjustable from a few seconds to several minutes). LUX: Features an integrated photocell mechanism to toggle dusk-to-dawn operation, allowing you to choose if the sensor triggers 24 hours a day or only after dark. Weatherproof Enclosure: Molded out of durable UV-resistant polycarbonate plastic, engineered for wall-mount installations in both sheltered indoor hallways and exposed outdoor environments. Compatible Mechanisms & Systems The SP-S13 functions as an inline power switch and is compatible with the following electrical hardware and mechanisms: Mains Voltage Power Grids: Designed to interface directly with universal AC power lines, typically rated for wide-voltage inputs between AC 110V–240V (50/60Hz). Lighting Fixtures & Load Types: LED Lights: Fully compatible with modern LED floodlights, downlights, and strip drivers up to specified wattage thresholds. Incandescent & Halogen Bulbs: Compatible with traditional resistive heating filament loads. Fluorescent / CFL Lamps: Works seamlessly with electronic ballast lighting fixtures. Security Alarms & Sirens: Can be wired to trigger low-voltage relays, hardwired security panels, or standalone audible warning sirens instead of (or in addition to) lighting. Standard Electrical Wiring: Features a simple 3-wire installation mechanism standard in electrical routing (typically Live Input, Neutral, and Switch/Load Output).
