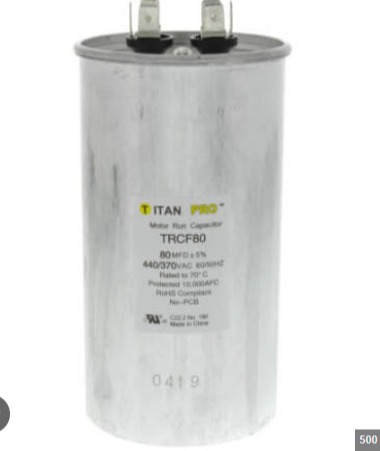

Oil Cap 80UF

Description

Product Description: Titan Pro TRCF80 80µF 370V/440V AC Motor Run Oil Capacitor Keep your heavy-duty electrical systems and HVAC equipment performing at peak efficiency with the Titan Pro TRCF80 80µF Motor Run Oil-Filled Capacitor. Encased in a rugged, round aluminum housing, this non-polarized capacitor utilizes a premium metalized polypropylene film dielectric suspended in a protective, non-PCB oil bath. Engineered for continuous-duty applications, it provides the essential phase-shift and power factor correction required to keep single-phase motors running smoothly, quietly, and efficiently. With dual-voltage compatibility (370VAC and 440VAC) and robust internal safety features, it serves as a highly reliable, long-lasting replacement for worn or bloated factory capacitors. Key Features High Capacitance Capacity: 80µF (Microfarads / MFD) with a ±5% precision tolerance to ensure stable electrical regulation. Dual-Voltage Compatibility: Rated for both 370V and 440V AC systems at 50/60Hz, providing excellent electrical headroom and universal replacement safety. Oil-Filled Design: Internal cooling oil quickly dissipates operational heat, vastly extending the service life of the internal film under harsh conditions. Built-In Pressure Disconnector: Equipped with an internal UL-recognized safety mechanism that disconnects power if internal pressure rises, preventing dangerous ruptures. Quad-Blade Terminals: Standard multi-pin male spade terminal header on top allows for quick, push-on wiring connections across multiple system leads. Compatible Machines & Systems An 80µF 370V/440V run capacitor is a common electrical component in high-tonnage residential and commercial machinery. It is universally compatible with heavy single-phase AC induction motors, including: Air Conditioners & Heat Pumps: Extensively used as a compressor or condenser fan run capacitor in large 3 Ton, 4 Ton, and 5 Ton central air conditioning systems (compatible with major brands like Carrier, Bryant, Lennox, Trane, and Goodman). Industrial Air Compressors: Helps stabilize power delivery and maintain the operational torque of large workshop compressor motors during extended cycles. Commercial Ventilation Blowers: Powers heavy-duty air handling units, industrial exhaust fans, and large furnace blower motors. Submersible Well Pumps: Ideal for high-horsepower deep-well water pumps and agricultural irrigation systems requiring constant electrical phase-shifting under continuous load. High-Capacity Refrigeration: Found in commercial walk-in coolers, freezers, and large ice machine compressor assemblies. ⚠️ Safety Note: Run capacitors store a substantial and potentially lethal electrical charge even when the power to the machine is turned off. Always shut off the main breaker and safely discharge the capacitor terminals using a properly insulated tool before handling or attempting installation.
