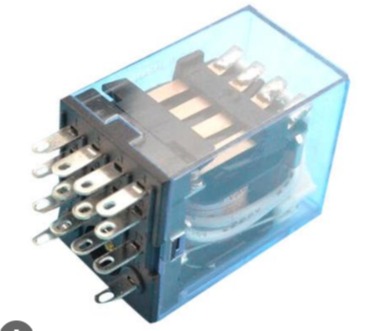

Omron 14Pin Relay AC 220V

Description

Omron MY4N-GS 14-Pin Miniature Power Relay (AC 220V/240V Variant) The Omron MY4N-GS AC220/240 is a next-generation miniature electromagnetic “ice-cube” relay engineered for sequential logic systems, multi-circuit tracking, and control panel automation. Utilizing a 14-pin configuration, this 4PDT (4 Pole Double Throw) relay uses an AC 220V to 240V mains control coil to safely isolate and toggle up to four separate electrical pathways at the same time. Key Features Contact Configuration: 4PDT (4 Form C: 4 Normally Open / 4 Normally Closed contacts). Coil Voltage: 220V to 240V AC (Alternating Current), matching standard domestic and industrial control line voltages. Switching Capacity: Rated for standard miniature electrical control draws up to 3A to 5A at 220V AC or 3A at 28V DC. Visual Diagnostics: Outfitted with an integrated LED indicator lamp that glows dynamically when the internal coil is actively energized, making debugging straightforward. 14-Pin Configuration: Features 2 pins for the triggering solenoid coil, 4 common (COM) lines, 4 normally open (NO) contacts, and 4 normally closed (NC) contacts. Compatibility Guide The 220V/240V AC variant of this 14-pin relay acts as a reliable sequence and isolation link directly within standard utility voltage grids. 1. Compatible Trigger Inputs Because this model runs on an AC 220V/240V coil, it hooks directly into mains-level pilot controls: Line Voltage Pilot Circuits: Can be energized straight from standard pushbuttons, limit switches, and industrial float switches without requiring an intermediate step-down transformer. PLC Relay Output Cards: Driven safely by standard line-voltage relay output modules on industrial Programmable Logic Controllers. 2. Compatible Base Sockets (Mounting) To enable quick, toolless replacements during preventative maintenance loops, this plug-in relay drops onto standard track-mount bases: PYFZ-14-E / PYF14A-N Sockets: The standard matching 14-way screw-terminal socket blocks. They snap directly onto standard 35mm DIN rails, allowing field technicians to route and lock down raw field wires securely using a standard flathead screwdriver. 3. Common Applications Multi-Circuit Signal Branching: Instantly distributes a single line-voltage trigger pulse (like an emergency stop or safety gate closure) to perform four isolated actions at once (e.g., cutting motor power, updating a PLC input loop, activating a warning beacon, and engaging a brake contactor). PLC I/O Isolation: Protects sensitive controller processing cards from electrical noise and inductive back-EMF kickback produced by heavy factory field machinery. HVAC & Automation Regulation: Coordinates facility heating blocks, inline exhaust ventilation arrays, automated conveyor logic, and motorized damper valves.
