RC Thermostat KST-168

Description

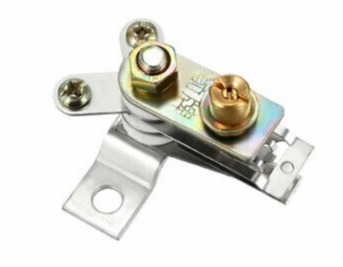

Product Description The KST-168 Adjustable Bimetallic Thermostat Switch is an industry-standard temperature control regulator designed to safely monitor and adjust heating cycles in high-power household and commercial appliances. Operating on a bimetallic snap-action mechanism, the internal metal strip bends or straightens as ambient heat changes, separating or joining its heavy-duty contact points once your targeted temperature threshold is reached. This model features a central brass rotary spindle that can be connected directly to an appliance’s external control dial, giving users manual control over the thermal range. Supported by a thick, heat-resistant ceramic block body and an integrated metal mounting flange, it offers reliable vibration isolation and exceptional cyclic endurance under intense thermal workloads. Key Specifications Model Designation: KST-168 / KST168 Series (Often stamped with a maximum thermal limit like T250). Voltage Rating: 220V−250V AC universal operation. Current Capacity: 16A continuous load (Heavy-duty handling optimized for heating elements ranging from 1000W to over 3000W). Maximum Temperature Rating: Up to 250 ∘ C (T250) depending on the exact calibrated variant. Terminal Layout: 2-Pin male spade quick-connect lugs. Mounting Base: M4 threaded screw hole configurations on an adjustable metal orientation bracket. Compatibility Guide The KST-168 is a foundational industrial component built to universal electrical dimensions. Rather than matching a specific brand, compatibility is determined by physical layout, current rating, and temperature threshold. 1. Compatible Applications & Products Due to its high amperage ceiling (16A), this thermostat is widely sourced as an OEM factory part or drop-in replacement component inside: Electric Ovens & Toasters: Serves as the primary adjustable temperature switch behind the main front panel dial for countertop baking ovens and rotisseries. Electric Stove Tops & Hot Plates: Regulates heating cycles on heavy-duty single or double burner induction and radiant counter stoves. Heavy-Gauge Electric Irons: Governs the thermal cycling of commercial garment steamers and domestic clothing irons. Commercial Rice Cookers: Often integrated as the secondary overheat protector or main temperature regulator in large-capacity multi-use kitchen cookers. 2. Marketplace & Regional Availability This standard part is easily sourced across various regional platforms for localized hardware repairs: E-Commerce Distribution: Readily available on platforms like Daraz.lk (serving Sri Lanka), Duinolk, and Amazon, often distributed by electronics supply specialists such as KST Servos, NUHFUFA, and XYWHPGV. ⚠️ Installation Tip: When replacing a KST-168 thermostat, ensure the replacement matches the temperature rating (e.g., T250) of the original unit. When mounting, do not distort or forcefully bend the bimetallic spring assembly, as altering the factory tension will permanently drift the temperature accuracy of your control dial.
