RCA Male Chassis Socket

Description

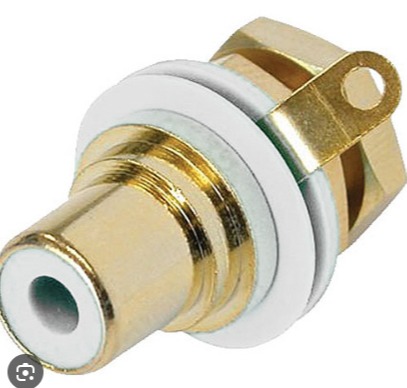

Rean NYS367 Chassis-Mount RCA Female Socket The Rean NYS367 Chassis-Mount RCA Socket is a heavy-duty, panel-mounted component manufactured by REAN (a brand of Neutrik AG). Designed for premium audio and video equipment, this connector features high-quality gold plating on its contact points for maximum conductivity, low signal loss, and excellent corrosion resistance. It comes equipped with a solid hex isolation washer and a color-coded identification ring (such as Red, White, or Yellow) to clearly distinguish audio and video channels on custom chassis panels. Key Features Connector Type: RCA (Phono) Female Jack / Chassis Panel Socket. Contact Plating: Premium gold-plated contacts ensure a long-lasting, noise-free connection. Mounting Hardware: Includes a securing hex nut, ground tab terminal, and isolation washers to prevent grounding loops against metal enclosures. Termination: Reliable rear solder tabs for clean, manual wire connection. Brand Reliability: Backed by REAN/Neutrik engineering for excellent mechanical life and durability. Compatibility Guide This chassis socket is widely used by DIY audio builders, repair technicians, and manufacturers to build out input/output connection panels. 1. Compatible Tools & Materials (For Installation) Cabling: Pairs perfectly with shielded audio cables, low-voltage hookup wires, or high-performance coaxial cables. Tools: Standard soldering iron, solder wire, and a 3/8″ (approx. 9.5mm) drill bit to create the clean panel cutout required for mounting. 2. Compatible Equipment Panels (Applications) Custom Audio Amplifiers: Ideal for installing dedicated Left/Right stereo input terminals on DIY tube or solid-state power amplifiers. Preamps & DACs: Used on back panels of custom digital-to-analog converters (DACs) and phono preamplifiers. Home Theater Wall Plates: Perfect for constructing custom studio, multimedia, or home theater AV wall junction boxes. Speaker Backplates: Fits active speaker chassis plates or passive subwoofers utilizing low-voltage line level inputs. 3. Interfacing Connectors (Input Plug) RCA Male Plugs: Fits any standard RCA male audio/video connector pin from brands like REAN, Neutrik, Amphenol, or generic patch cables.
