RCA Male Jack Normal

Description

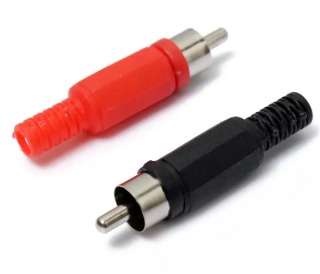

RCA Male Jack Connector (Standard Solder Type) The Standard RCA Male Jack Connector (commonly referred to as a phono plug or RCA pin) is an essential, highly versatile hardware component used to terminate custom audio and video cables. Featuring a robust internal solder terminal block and a flexible plastic or rubber strain-relief boot, this connector ensures an optimal, long-lasting electronic connection. It is universally recognizable by its colored outer rings—typically Red for the Right audio channel, White or Black for the Left audio channel, and Yellow for composite video signals. Key Features Connection Type: Solder terminal connection (requires manual soldering to the wire core and shielding). Body Material: High-conductivity metal tip paired with a durable, insulated plastic or metal outer sleeve. Integrated Strain Relief: Equipped with a flexible rear boot to prevent wire stress and cable damage from frequent unplugging. Channel Identification: Color-coded housings allow for quick connection layout troubleshooting. Compatibility Guide As an industry-standard component, this RCA connector is compatible with a vast ecosystem of consumer electronics, pro-audio installations, and retro gaming setups. 1. Compatible Cable Types (For DIY Assembly) Coaxial Audio Cables: Standard RG-59 or similar shielded cables used for digital coaxial audio. Speaker & Hookup Wire: Standard two-conductor low-voltage wires used to custom-build line-level connections. Shielded Audio Cables: Single-core or dual-core shielded cabling designed to minimize signal hum. 2. Compatible Equipment Ports (RCA Female Sockets) Home Theater & Hi-Fi Receivers: Plugs into the auxiliary (AUX), Tape, CD, or Phono inputs of stereo receivers from brands like Denon, Sony, Yamaha, and Pioneer. Amplifiers & Subwoofers: Connects directly to line-input ports on active subwoofers (such as Klipsch or Polk Audio) and dedicated home audio power amplifiers. Televisions & Monitors: Standard composite video and analog audio input panels found on CRTs and older flat-screen displays. Legacy Media Players: Audio/Video output jacks on DVD players, VCRs, CD changers, and classic gaming consoles (such as the Sony PlayStation 1/2, Nintendo 64, and Sega Genesis).
