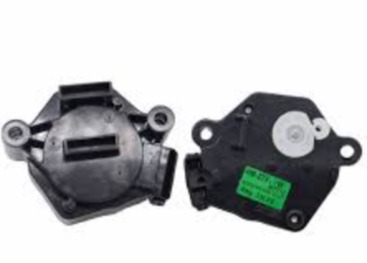

WM Drain Motor HM-27V1

Description

The HM-27V1 (also widely cataloged as HM-27V, HM-27V/W, or HM-27V1/W) is a precision-engineered, high-torque washing machine drain tractor motor manufactured primarily for Panasonic Top-Load Fully Automatic Washing Machines. Installed beneath the main outer wash tub, this motorized retractor acts as an electronic actuator. When the control board initiates a drain or spin cycle, it retracts its internal cable hook to mechanically open the rubber drain valve while simultaneously toggling the clutch gear mechanism. This dual action allows the machine to effortlessly dump wastewater and transition safely into high-speed spinning. Key Features & Specifications Model Designations: HM-27V1, HM-27V, HM-27V/W, HM-27V1/W Electrical Input: AC 220V – 240V | 50/60 Hz Housing Build: Reinforced, moisture-sealed ABS thermoplastic enclosure Primary Mechanism: Steel-core traction cable / retractor hook Performance: Low-noise operation with optimal mechanical pull force to prevent stubborn valve blockages Compatible Machines & Models This tractor assembly is explicitly built to fit Panasonic and National top-loading automatic laundry units. It is an authentic drop-in replacement across several generational chassis variants: Panasonic / National XQB Series: XQB46-8480 XQB52-8512 Panasonic NA-F Series: NA-F50G1M2 NA-F520KM NA-F600KM NA-F60K2M NA-F63S1 NA-F63S1M 💡 Tech Tip: While the HM-27V1 is engineered predominantly for the Panasonic ecosystem, ensure your underlying wiring connector matches the original pin placement (2-pin or 3-pin configuration depending on production year) to ensure an error-free, plug-and-play restoration.
