WM PCB LG – EBR62229504

Description

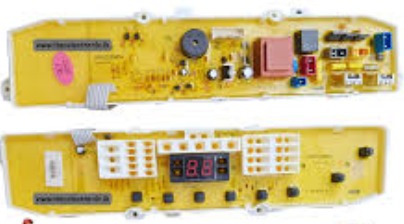

The LG Fully Automatic Top-Loading Washing Machine PCB Module (EBR62229504) is an original electronic control unit designed to manage and execute all core appliance operations. As the primary motherboard, it processes cycle selections made on the control panel and accurately distributes power to the water inlet solenoids, wash motor, and drain pump. This configuration features a prominent front user interface lined with 8 tactile control buttons and a central digital LED display housing for tracking remaining cycle times and diagnostic errors. Engineered for durability against the humid environments of home laundry areas, the entire underside assembly is heavily insulated with a high-grade yellow potting compound to shield sensitive microchips from condensation, water splashes, and physical wear from drum vibrations. Key Features 8-Button Control Cluster: Layout lines up perfectly behind multi-program LG top-load control panel graphics. Socket: 6 Layout: Built with a specific 6-socket connection terminal array on the board frame. Integrated Timer Window: Features an aligned digital panel to show real-time countdown tracking and standard system error signals. Heavy-Duty Resin Enclosure: Thick potting gel isolates vulnerable trace lines to prevent electrical short-circuits. Compatible Machines & Models The EBR62229504 motherboard layout is explicitly designed to service various international and regional variations of LG TurboDrum & Fuzzy Logic Fully Automatic Top-Load Washing Machines. It serves as a direct drop-in replacement or factory substitution for the following model configurations: Primary Model Line: WF-T70SF (e.g., 7.0kg Top-Load Series) Direct Part Number & Firmware Substitutions: EBR62229501 EBR62105301 EBR62229510 ⚠️ Critical Installation Step: LG engineered several variations of their 8-button top-load control systems. While they may share the same exterior housing, they can vary by internal socket types. Ensure your original damaged control board uses a 6-socket interface matching this specific model before completing your repair.
