Description

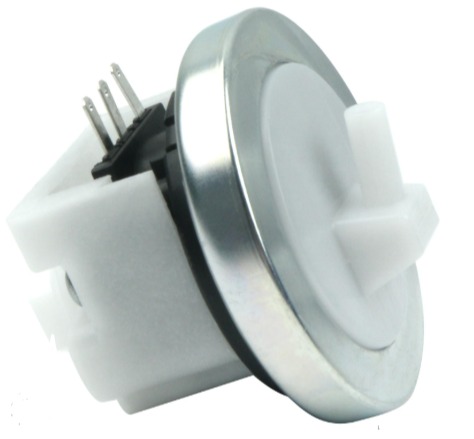

The Q602VL Electronic Water Level Pressure Sensor (frequently cross-referenced with the XQB45 or Q2508PG series) is a precision-engineered induction-type water level switch designed for modern fully automatic top-loading washing machines. Operating on a low-voltage DC frequency signal loop, this sensor monitors water levels via air pressure displacement. As water fills the wash tub, air is forced up through a thin rubber pressure hose into the sensor’s sealed nozzle. This air pressure shifts an internal diaphragm across an induction coil, changing the circuit’s output frequency. Once the electronic control board detects the correct frequency matching your chosen wash setting, it cuts power to the water inlet valve to begin the cycle. Replacing a failing sensor quickly remedies common faults like persistent tub overfilling, constant draining, or cycle freeze-ups accompanied by an “E4”, “PE”, or water-inlet error code. Key Features & Specifications Model Designation: Q602VL / XQB45 / Q2508PG / 3026 Architectural Platform Electrical Rating: DC 5V | 6mA to 10mA (Low-voltage digital signal logic) Terminal Interface: 3-Pin linear male terminal block connection Housing Build: High-grade, moisture-sealed white polymer chassis with a metallic protective structural plate Pneumatic Connection: Single tapered top-facing air nozzle designed for standard 1/4″ rubber pressure tubes Compatible Machines & Models The Q602VL Universal Pressure Switch is a highly standardized electronic component found across a wide variety of automatic top-loading and drum-style washing machines: Singer Fully Automatic Washers: Natively engineered for several top-loading platforms, including the widely used Singer Q-602VL washer series. Damro & Innovex Top-Loaders: Directly compatible with Innovex and Damro automatic models that employ a 3-pin DC 5V control interface. Midea & Little Swan Washers: Serves as an exact factory-spec replacement part for Midea electronic water level pressure sensors across their compact and mid-capacity product lines. Haier Top-Load Series: Natively compatible with regional Haier automatic washing machines requiring a metal-backed, 3-pin linear plug sensor. 💡 Fitment Check Tip: While many brands use an identical round, metal-capped outer body shell, ensure your machine’s wiring clip features a 3-pin straight-line socket. If your existing sensor uses a triangular 3-pin arrangement or a 2-pin switch layout, the plug harness will not align with this Q602VL platform variant.
