yoga microphone DM-193

Description

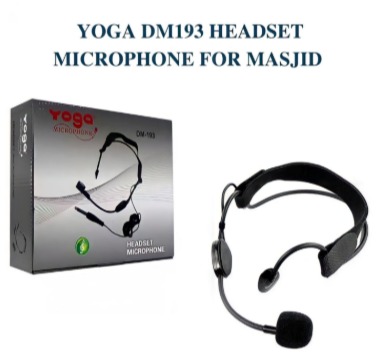

The Yoga DM-193 is a rugged, lightweight wired headset microphone engineered for hands-free public address (PA) applications. Unlike sensitive condenser headset mics, the DM-193 features a high-performance dynamic microphone capsule. This makes it exceptionally durable, highly resistant to moisture (such as sweat), and excellent at ignoring ambient room noise. Featuring an ergonomic, flexible over-the-ear headband and a generous 5-meter attached cable, it provides maximum freedom of movement. It is a highly popular, budget-friendly choice for religious instructors in mosques, fitness trainers, school teachers, and public speakers who require a reliable, plug-and-play voice amplification solution. Key Mechanical & Technical Features Dynamic Microphone Element: Utilizes a moving-coil dynamic capsule that operates entirely passively. It does not require batteries, phantom power, or bias voltage to function. Ergonomic Headband Frame: A lightweight, curved plastic and metal headgear mechanism that hooks securely over both ears and rests comfortably behind the neck to prevent slipping during active movements. Flexible Boom Arm: The mic capsule is mounted on an adjustable, flexible mechanical arm, allowing users to position the microphone element directly in front of or to the side of the mouth. Integrated 5-Meter Heavy Duty Cable: Comes hardwired with an extra-long, durable 5-meter (approx. 16 feet) shielded cable to minimize signal interference and offer ample room to move around a podium or stage. Compatible Mechanisms & Audio Equipment Because the DM-193 is a passive dynamic microphone terminating in a standard large audio plug, it relies on specific audio inputs to function: PA Amplifiers & Mixing Consoles: Plugs directly into any commercial public address amplifier, karaoke machine, or mixing board equipped with a standard 6.35mm ( 4 1 ​ “) TS mono microphone jack. Portable Waistband & Trolley Speakers: Fully compatible with portable, battery-powered outdoor trolley speakers or tour-guide waistband amplifiers that feature a dedicated 6.35mm mic input port. Low-Impedance Systems (600Ω): With a rated impedance of 600 ohms, its internal voice coil matches optimally with standard low-impedance microphone pre-amplifier circuits to ensure maximum volume output without distortion. Audio Adapters (Optional): Can be connected to smaller 3.5mm mic inputs (like those on laptops or smaller portable speakers) via a passive 6.35mm-to-3.5mm step-down adapter mechanism. Note: Because it is a dynamic mic, its output signal is lower than digital headset mics, so it functions best when plugged into a dedicated, amplified microphone input.
